Instruction Manual

Installation

1. Ensure your computer system and DisplayPort Displays are powered o.

2. Connect the integrated DisplayPort cable into the DisplayPort connector on the

host computer system/video card.

3. Connect the DisplayPort monitor/display device(s) into the DisplayPort #1/#2/#3

connectors on the MSTDP123DP MST Hub.

4. Power on the monitor/display device(s).

5. Turn on the computer system.

6. The system will now detect the MST Hub, and add the attached displays to the

Display Settings of the System.

Microsoft® Windows® Operation

With a DisplayPort 1.2 compatible video card, Microsoft Windows® will recognize the

individual Displays (up to 3) and can either Extend or Duplicate the main Monitor.

Adjust video settings in Microsoft Windows®

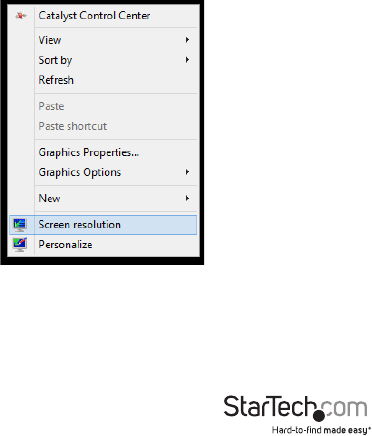

1. Right click the Windows Desktop and select “Screen Resolution”. The Display Settings

window appears.
